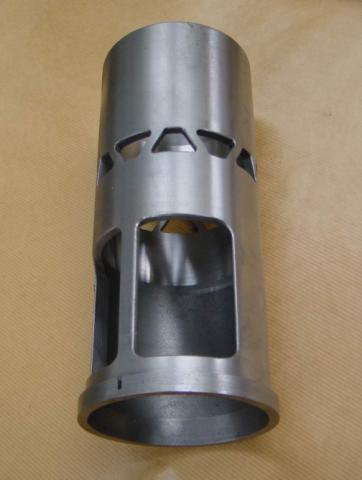

Our design for a cast iron valve liner. The photograph shows the trapezoidal transfer ports and large rectangular exhaust ports which ensure good breathing of the cylinders at high speeds when working with short cut-offs.
